| 치수 (l*w*h): | 9500mm*1550mm*1700mm | 사용: | 지붕 |
|---|---|---|---|
| 타일 유형: | 착색 유약 강철 | 애프터 판매 서비스 제공: | 비디오 기술 지원 |
| 보증: | 24 개월 | 제어 시스템: | 완전히 자동 PLC 대만 델타 |
| 강조하다: | three layer roll forming machine for steel sheets,multi profile roll forming machine for roofing,steel wall sheet roll forming machine |
||

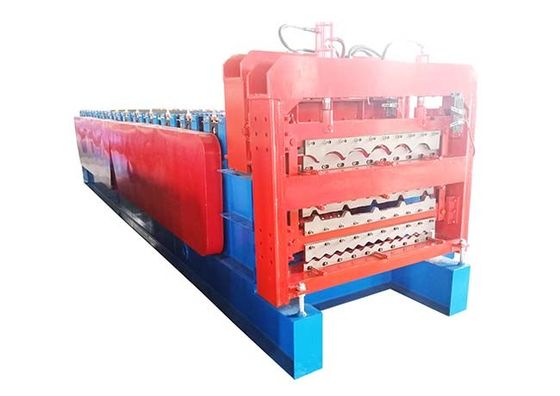

This three-layer (triple-layer) metal sheet roll forming machine is designed for multi-functional production, enabling a single device to manufacture three different types of roofing and wall sheets —such as trapezoidal rib sheets, corrugated sheets, roof tile sheets, or other customized profiles.
Customers can freely request combinations of sheet types based on their project needs, eliminating the need to invest in multiple single-function machines and significantly optimizing production efficiency and cost.
The sheets produced by this machine are widely applicable to the roofing and wall cladding of various buildings, including industrial workshops, commercial warehouses, residential buildings, and public facilities. It supports two common raw material types: PPGI (pre-painted galvanized steel) and GI (galvanized steel), adapting to different durability and aesthetic requirements of construction projects.
| Item Category | Name | Specifications |
|---|---|---|
| 1. Decoiler | Capacity | 5 tons (supports large-coil raw materials to reduce coil replacement frequency) |
| Coil Width | 1250mm (compatible with mainstream wide-width steel coils) | |
| Coil Inner Diameter | 450-550mm (fits standard coil specifications) | |
| Main Motor Power | 5.5KW (ensures stable coil unrolling) | |
| Hydraulic Power | 5.5KW (provides power for auxiliary decoiling functions) | |
| Additional Features |
|
|
| 2. Main Roll Former | Roller Station | 13/15/18 stations (optional, adapted to different sheet profile complexity) |
| Roller Material | Cr12 steel with quenched treatment (high hardness, wear-resistant, long service life) | |
| Shaft Diameter | 80mm (thickened shaft for stable power transmission and anti-deformation) | |
| Shaft Material | 45# steel with tempering (enhances toughness and load-bearing capacity) | |
| Transmission Mode | Chain drive (stable transmission, low noise, suitable for long-term high-load operation) | |
| Motor Power | 7.5KW (strong power to drive multi-station forming) | |
| Machine Frame | 350H steel welded (high structural strength, anti-vibration during high-speed forming) | |
| Cutting Type | Hydraulic cutting (fast cutting speed, smooth cut edges) | |
| 3. Control System | System Type | PLC (centralized intelligent control for all processes) |
| PLC Brand | Siemens (reliable performance, low failure rate, global after-sales support) | |
| Touch Screen Brand | Siemens (intuitive operation interface, easy parameter setting and data monitoring) | |
| Button Brand | Schneider (durable, sensitive, suitable for industrial environments) | |
| Encoder Brand | Omron (high-precision positioning, ensures accurate length measurement and cutting) | |
| 4. Hydraulic System | Power | 5.5KW (provides stable pressure for cutting and auxiliary functions) |
| Cooling Device | Fan cooling (prevents hydraulic oil overheating during long-term operation, extending oil and component life) | |
| Brand | Yuken (well-known hydraulic brand, high pressure stability and reliability) | |
| Working Pressure | 16 Mpa (sufficient pressure for clean cutting and precise forming) | |
| 5. Product Table | Length | 3m (supports finished sheets to prevent deformation during discharge) |
| Type | Up-powered (assists in conveying finished sheets, reducing manual handling) |
The complete production line of the three-layer roll forming machine consists of four core parts: decoiler → roll former → computer control system → product table, with a fully automated workflow:
